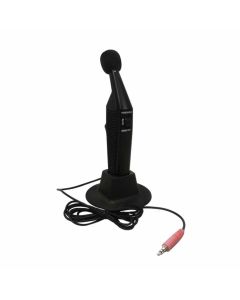

Andrea SG-110M Mobile Unidirectional Shotgun Microphone with 3.5mm Jack Plug

Andrea SG-110M, Long gun microphone, -36.5 dB, 100 - 10000 Hz, 1%, 2200 Ω, 60 dB
Vendor Vendor Product Name Vendor Part Code DS Part Code
Andrea Communications Andrea SG-110M Mobile Unidirectional Shotgun Microphone with 3.5mm Jack Plug C1-1033300-50 710033

Specifications:

  • Frequency Range - 100 Hz-10 KHz
  • Distortion - < 1%
  • Signal-to-Noise Ratio - 60 dB
  • Sensitivity - -36.5 dB +/- 3 dB (0 dB=1V/pa@1KHz)
  • Supply Bias Resistor - 2.2 KΩ +/- 0.5 KΩ
  • Operating Voltage - 1 Vdc to 1 Vdc
  • Operating Temperature - -20°C to +60°C
  • Microphone Plug - 3.5 mm

Product description:

The SG-110M Mobile Unidirectional Shotgun Microphone has enhanced sensitivity for far-field sound reception. The 30-inch shielded cable has a right-angled 3.5mm TRRS plug for mobile devices with a shared audio port including laptops, tablets, and most smartphones. Lightweight and portable, the SG-110M is ideal for use in lecture halls, meeting rooms and courtrooms.

Key features:

  • Directional Shotgun Microphone with enhanced sensitivity for far-field sound reception.
  • Highly directional polar response.
  • Enhanced RFI screening to eliminate audio interference.
  • Adjustable microphone tilt with rubber padded base.
  • Compact and lightweight for easy portability.
  • 30-inch shielded cable with 3.5mm right-angled TRRS plug.
  • Specifically designed for use with mobile devices.
  • Includes C-300 Mobile Microphone Adapter for use with a PC, Digital Recorder, or a USB adapter.

Compatibility:

  • Compatible with laptops, tablets, and most smartphones with a shared audio port.
  • To use the SG-110M with a device with a dedicated audio port (such as a PC, Digital Recorder, or a USB adapter) you will need the included C-300 Mobile Microphone Adapter, which converts the 4-pin TRRS plug to a 3-pin TRS plug. Click here for more information.
